Product Overview

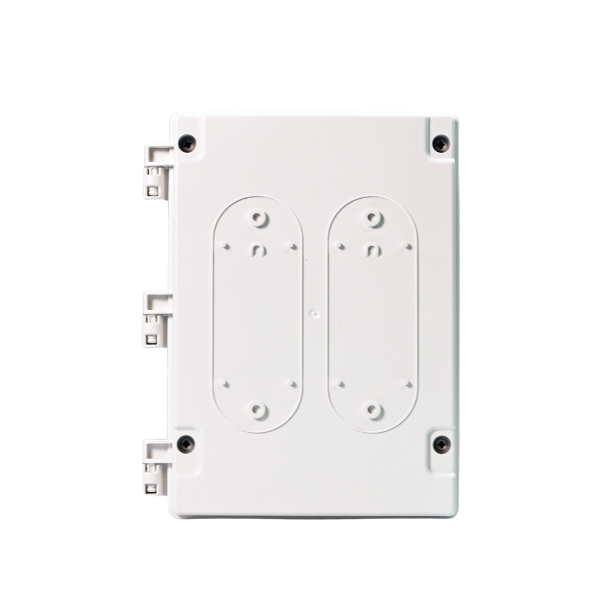

Take control of your outdoor comfort with the Bromic Affinity Smart-Heat On/Off Controller. Designed for compatible Bromic outdoor heaters, this smart control system lets you turn connected heaters on or off through the Bromic Heating App, organize heaters into zones, and create convenient heating schedules.
Available in 1-channel (6kW) and 2-channel (12kW) configurations, Affinity On/Off controllers provide a streamlined way to manage outdoor heating in residential patios, outdoor kitchens, restaurants, and entertaining spaces.
Key Features & Benefits
-
Convenient Wireless Control: Manage compatible heaters using the Bromic Heating App through 2.4GHz Wi-Fi or Bluetooth connectivity.
-
Flexible Heating Zones: Group heaters into zones for convenient control of different outdoor seating and entertaining areas.
-
Timers & Scheduling: Set heating schedules and automatic shutoff timers to simplify everyday operation.
-
Choose Your Capacity: Select a 6kW single-channel controller or a 12kW dual-channel controller for larger or more flexible heating installations.
Choose Your Controller
1-Channel / 6kW: Provides one on/off control channel with up to 6kW capacity at 208–277V. Suitable for controlling one or multiple compatible heaters within the channel's rated capacity.
2-Channel / 12kW: Provides two independently controlled channels, each rated up to 6kW at 208–277V. Ideal for installations requiring separate heating zones or independent control of heating elements on supported Bromic heaters.
Technical Specifications
- Brand: Bromic Heating
- Collection: Affinity Smart-Heat On/Off
- Model options: 1-Channel / 6kW and 2-Channel / 12kW
- Connectivity: 2.4GHz Wi-Fi and Bluetooth
- Maximum capacity per channel: 6kW at 208–277V
- Enclosure dimensions: 11.4" H × 8.0" W × 4.4" D
- Protection rating: IP54
- Operating temperature range: -4°F to 86°F
- Weight: 3.1 lb (1-channel); 3.6 lb (2-channel)
- Manufacturer warranty: 1 year
Heater Compatibility
Affinity On/Off controls support compatible Bromic electric and gas heating systems, including models in the Tungsten and Platinum collections. Each channel can control up to 6kW of electric heating at 208–277V or up to 10 compatible gas heaters, subject to the manufacturer's installation requirements.
The 2-channel controller can also provide independent element control for supported Tungsten 4000W/6000W and Platinum 4500W electric heaters.
Installation & Important Information
These controllers provide full-power on/off switching and do not offer variable heat dimming. Electrical installation, heater compatibility, circuit capacity, and required clearances should be verified by a qualified installer using Bromic's official installation instructions.
Heaters and optional accessories are sold separately unless otherwise specified.
