Cozy Heat Quattro Wood-Burning Sauna Stove Package

Product Overview

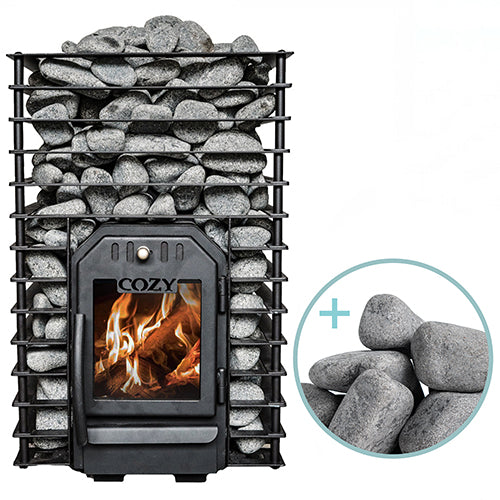

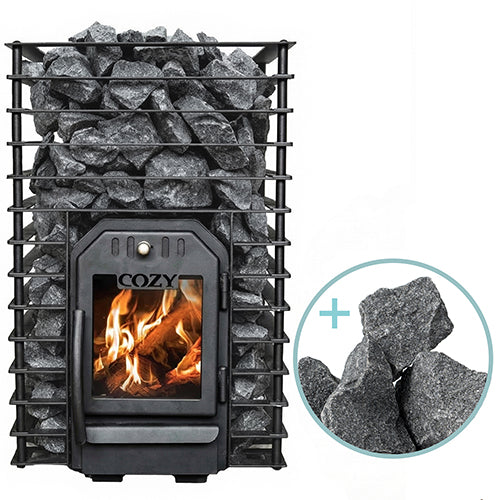

Cozy Heat Quattro Wood-Burning Sauna Stove Package makes it easier to build a complete wood-fired sauna heater setup by pairing the Cozy Heat stove with the sauna stones required for the selected output. Choose 12 kW for sauna rooms from 210–423 cu. ft. or 18 kW for rooms from 317–635 cu. ft., then select Split-Face or Round Stone.

Key Features

• Complete package combines the Cozy Heat wood-burning sauna stove with the sauna stones required for the selected output
• Signature square Quattro design gives traditional wood-fired heat a clean, architectural appearance
• Large exposed stone mass produces rich steam and helps maintain smooth, lasting warmth
• Cozy Heat-engineered combustion is designed to reduce wood use while producing cleaner exhaust

Specifications

Additional Technical Data

• Fuel: natural wood logs
• Flue connection diameter: 4.48" (114 mm)
• Minimum smoke-flue cross-section: 12.7 sq. in. (7,850 mm²)
• Minimum ventilation-opening cross-section: 16.5 sq. in. (10,200 mm²)
• Maximum firewood length: 13" (33 cm) for HEAT12; 15.7" (40 cm) for HEAT18

Minimum Safety Clearances to Combustible Materials

Included Sauna Stones

Sauna stones are included with this package. Select Split-Face Stone or Round Stone; the included quantity is sized to meet or exceed the published minimum stone capacity for the selected 12 kW or 18 kW stove.

What's Included

Cozy Heat wood-burning sauna stove in the selected model, heater body and outer frame, 4.48" (114 mm) chimney connection pipe, upper cleaning hole/cleaning hatch, glass heater door, ash box, operating tool/safety cloth, installation and operation manual, and manufacturer's 24-month warranty. Sauna stones, complete chimney/flue system, floor/wall protection and installation accessories are not included unless specifically stated.

Installation Note

Install on a floor with adequate load-bearing capacity and provide required noncombustible floor/wall protection, ventilation and chimney connection. The stove is not suitable for connection to a shared flue. Required clearances may be reduced only where the manufacturer permits an approved protective wall or equivalent protection. Installation must comply with the Cozy Heat installation manual and applicable local codes; professional installation may be required.
